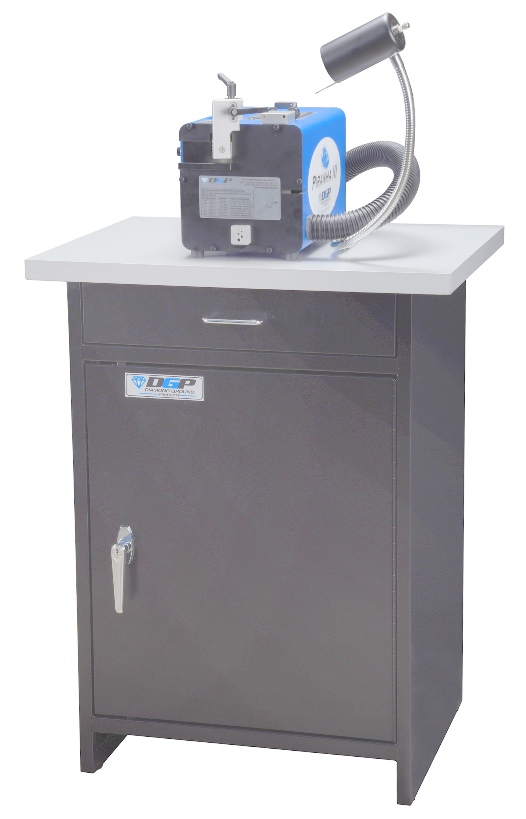

Piranha DGP-PG3-A-V2 Tungsten Grinder W/ Insulated Vacuum Cabinet and Light

The DGP-PG3A grinder is designed for maximum commercial use and includes a universal collet which will grind from .040.-3/16. The construction of the DGP-PG3-A unit is heavy solid steel and very user-friendly. The Piranha III unit is also fully enclosed with a 90% containment of excess tungsten electrode dust. NOTE: Dry grinding dust is fully disposable and Non Hazardous. DGP-PG3-A-V2 INCLUDES: Vacuum System, Foam Insulated Cabinet and Flexible Spotlight.

Dimensions: 36″ x 36″ x 52″ – 165 lbs 914.4 mm x 914.4 mm x 1320.8 mm – 80.74 kg)

Key Features: Sliding dust shield for enhanced dust containment Longitudinal 20 RA grinding maximizes arc starting and arc stability Integrated electrode receptacle area Lighted on/off switch Lighter grinder casing for improved portability Included angle scale for easy and accurate selection from 10° - 60º Universal collet for 6 electrode sizes, with no equipment changes 0.040" (1.0mm) 1/16" (1.6mm) 3/32" (2.4mm) 1/8" (3.2mm) 5/32" (4.0mm) 3/16" (4.8mm) NOTE: Optional Single or Multiple size Collets are available.

Precision tip flat gauge & depth adjustment ensures exact tip flat every time Tip Flat block for square end grinding Electrode notching area for simple cut-off
